FLUG: Git, Master the magic time machine

Thomas Rasmussen

16. November, 2023

About me

Thomas Rasmussen

LinkedIn

I work as a software developer/consultant at Gennemtænkt IT

- working primarily with the JVM using Groovy and Grails

Git is a distributed version control system

Development was started by Torvalds in April 2005 when the proprietary source-control management (SCM) system used for Linux kernel development since 2002, BitKeeper, revoked its free license for Linux development - Wikipedia: Git

The decision made in 2002 to use BitKeeper for Linux kernel development was a controversial one. Some, including GNU Project founder Richard Stallman, expressed concern about proprietary tools being used on a flagship free project. While project leader Linus Torvalds and other core developers adopted BitKeeper, several key developers (including Linux veteran Alan Cox) refused to do so, citing the BitMover license, and voicing concern that the project was ceding some control to a proprietary developer - Wikipedia: BitKeeper

(D)VCS - distributed version control system

In software engineering, a version control system (also known as revision control) is a class of systems responsible for managing changes to computer programs – Wikipedia: VCS

Git

Website: git-scm.com
Docs: Website: git-scm.com/docs

At first Git can look like a monster - it has many commands and many ways of doing things

Try to keep it simple - add, commit, push …

Use it for maintaining the Linux kernel with thousands of developers - or use it for your own private one developer project

Git install

Install Git using your OS package manager

Ubuntu

$ sudo apt-get install git-all

Or dowload and follow instructions from Git-scm downloads

Git configure

$ git config --global user.name "Thomas Rasmussen
$ git config --global user.email "example@example.com"
$ git config --global --list
user.name=Thomas Rasmussen
user.email=example@example.com

The config file

$ cat ~/.gitconfig
[user]
    name = Thomas Rasmussen
    email = example@example.com

…

[init]
    defaultBranch = "master" # or "main"

…

[includeIf "gitdir:~/workspace/gennemtaenkt/"]
    path = ~/.git/gtit.inc

Git config

Create a repository

$ mkdir my-project
$ cd my-project
$ git init
Initialized empty Git repository in /home/thomas/my-project/.git/

Git bare also creates a repository, but it does not have the working directory

Use this for the “main” repository that developers push and pull to/from

$ mkdir my-project.git
$ cd my-project.git
$ git --bare init

The .git folder

├── branches
├── config
├── description
├── HEAD
├── hooks
│  ├── applypatch-msg.sample
│  ├── commit-msg.sample
│  ├── post-update.sample
│  ├── pre-applypatch.sample
│  ├── pre-commit.sample
│  ├── prepare-commit-msg.sample
│  ├── pre-rebase.sample
│  └── update.sample
├── info
│  └── exclude
├── objects
│  ├── 09
│  │  └── 2ca1d854a2aa8fdc8a9c19ee8225eb3d6bc2ca
│  ├── 0f
│  │  ├── 5aded2c67fa82f99527d6dd9f236aacaa8b0c9
│  │  └── 74d568bd457904b79eb62052f77525ad6fc3a2
│  ├── 17
│  │  └── fcc1f450cfb471f9ff0c6e936a042fae9f6ffd
│  ├── 4d
│  │  └── ...
│  ├── info
│  └── pack
└── refs
    ├── heads
    │   └── master
    └── tags
        |09|        ...                          |
git show 092ca1d854a2aa8fdc8a9c19ee8225eb3d6bc2ca

NOTE: Don’t edit the .git folder!

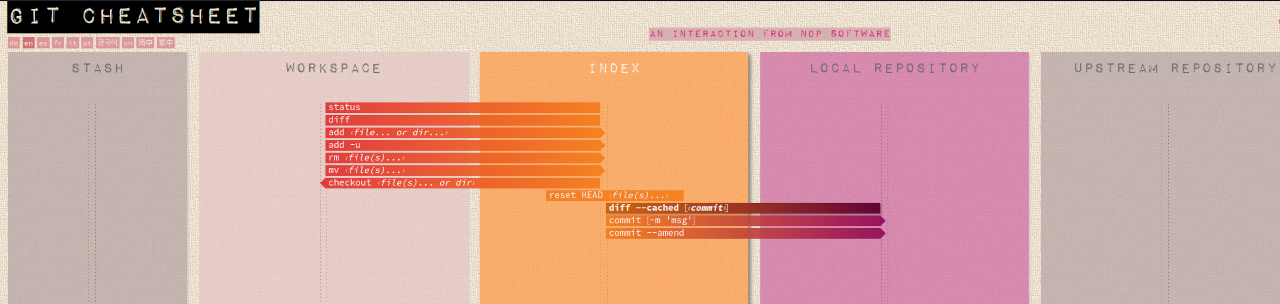

Git - Stash, workspace, index, local, upstream

Source: Git Cheatsheet

Add files and commit

$ vi README.md
$ git status
On branch master

No commits yet

Changes to be committed:
  (use "git rm --cached <file>..." to unstage)
    new file:   README.md

$ git add README
$ git commit -m "Initial commit"

$ git commit -v

Editor - use default

$ export EDITOR=vi
$ echo $EDITOR
vi

Or specify in ~/.gitconfig

...
[core]
    pager = more
    editor = vim
...

Git demo

Git revert

The revert command is one of gits ways of undoing commits

$ git revert HEAD
[master 31adeb6] Revert "M-5"
 1 file changed, 5 deletions(-)

Git reset

Reset is another way of undoing and the most complex and versatile of the two

$ git reset --hard 161655d9ae78360970d2fb61f8f85e0267695b11
HEAD is now at 161655d M-7

Branches

Branching is the duplication of an object under version control (such as a source code file or a directory tree).
Each object can thereafter be modified separately and in parallel so that the objects become different.
In this context the objects are called branches.

Source: Wikipedia

Why branches

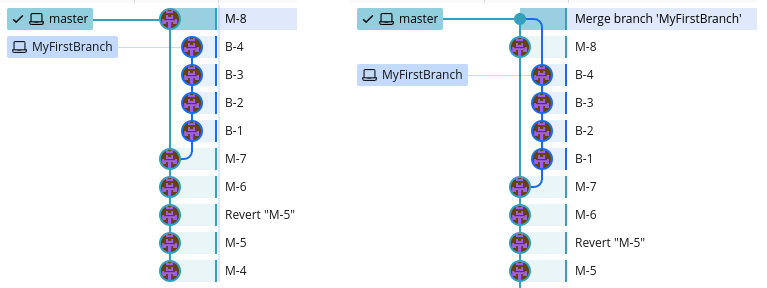

Branch example

$ git checkout -b MyFirstBranch
Switched to a new branch 'MyFirstBranch

# Add and commit changes B-1 to B-4 ....

$ git checkout master
# Or use switch
$ git switch master

$ git branch
  MyFirstBranch
* master

# Merge MyFirstBranch INTO master
$ git merge MyFirstBranch

Git merge conflict

Sometimes Git can’t merge if files have been edited by multiple people

$ git merge MyBranch

>>> Auto-merging README.md
>>> CONFLICT (content): Merge conflict in README.md
>>> Automatic merge failed; fix conflicts and then commit the result.

...

$ vi README.md

<<<<<<< HEAD
# How to resolve Git Merge Conflict
=======
# How to resolve Git Conflict
>>>>>>> MyBranch

Git cherry-pick

git cherry-pick - Apply the changes introduced by some existing commits

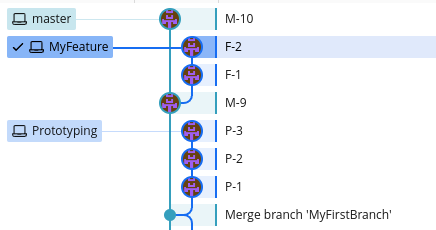

Example scenario

I have two branches, a prototype I don’t want to merge and a feature branch I occasionally want to merge.

The prototype branch has a file I want.

Git cherry-pick - fail

$ git cherry-pick 0806c57ed3e02f3adf2ae634f8c8664e42acb7f2
CONFLICT (modify/delete): LICENSE.md deleted in HEAD and modified in 0806c57 (P-2).  Version 0806c57 (P-2) of LICENSE.md left in tree.
error: could not apply 0806c57... P-2
hint: After resolving the conflicts, mark them with
hint: "git add/rm <pathspec>", then run
hint: "git cherry-pick --continue".
hint: You can instead skip this commit with "git cherry-pick --skip".
hint: To abort and get back to the state before "git cherry-pick",
hint: run "git cherry-pick --abort"

$ git status
On branch MyFeature
You are currently cherry-picking commit 0806c57.
  (fix conflicts and run "git cherry-pick --continue")
  (use "git cherry-pick --skip" to skip this patch)
  (use "git cherry-pick --abort" to cancel the cherry-pick operation)

Unmerged paths:
  (use "git add/rm <file>..." as appropriate to mark resolution)
        deleted by us:   LICENSE.md

$ git cherry-pick --abort

I tried to cherry-pick the P-2 commit which is an edit of a file not present in my current branch - I abort

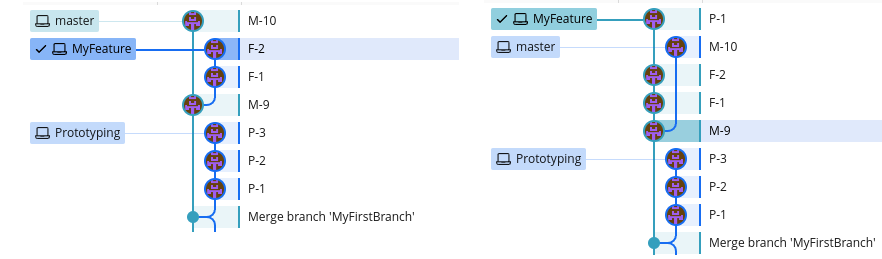

Git cherry-pick – success

And pick the P-1 commit which adds the file

$ git cherry-pick 9ec817c24440cdc2afbb660e00d1d183e00c3574
[MyFeature 62a467a] P-1
 Date: Wed Nov 15 21:36:57 2023 +0100
 1 file changed, 3 insertions(+)
 create mode 100644 LICENSE.md

git-cherry-pick

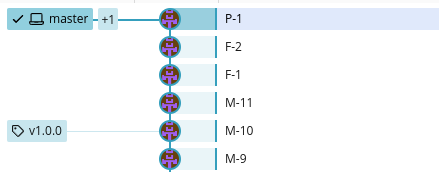

Git tag

Tags are a way of tracking milestones (fx. a release or deploy)

$ git tag v1.0.0

$ git push --tags

Semantic versioning

Git log

Show what has been added to the repository and by who

$ git log

Search log

Search across all branches ignoring case for the word “slides”

$ git log --all -i --grep='slides'

Changelog:

$ git log --oneline --decorate v0.0.9..v0.1.0

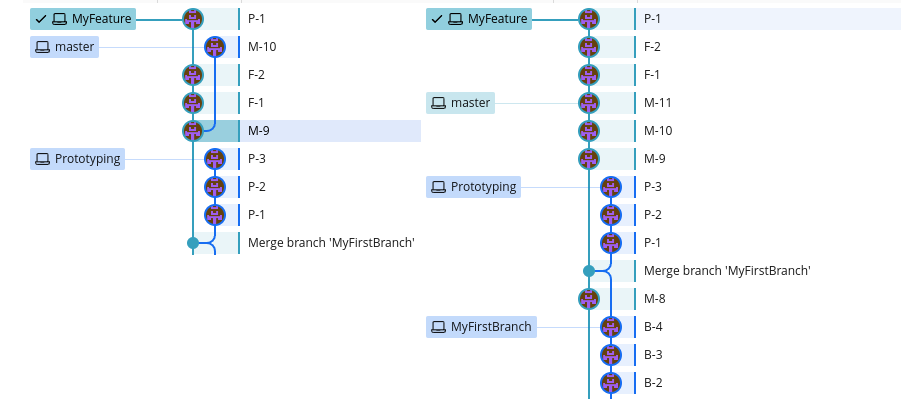

Git rebase onto

# rebase feature branch ONTO the master branch
$ git rebase master

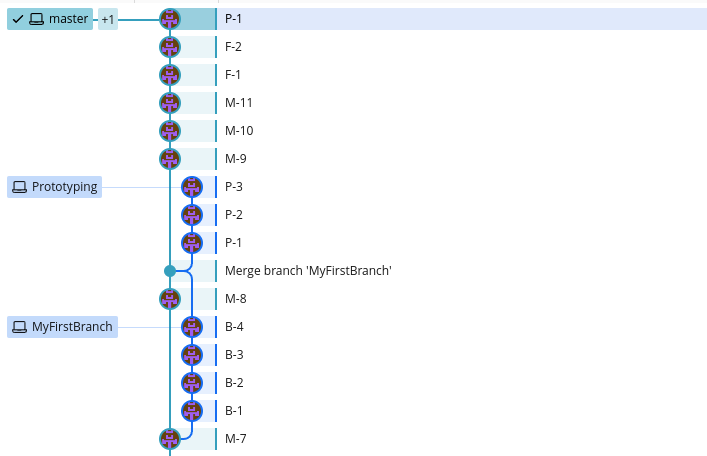

Git rebase changes to master

$ git checkout master
$ git rebase MyFeature
Successfully rebased and updated refs/heads/master.

Notice difference between MyFirstBranch and MyFeature

Git rebase --interactive

git rebase is a powerful command, and it can be used for many things - fx squashing multiple commits together into one

$ git rebase --interactive HEAD~4

# Opens up in editor

pick d209cad M-11
squash 44987a3 F-1
squash 73f1cf7 F-2
squash cae1cb7 P-1

# Rebase 4a9d085..cae1cb7 onto 4a9d085 (4 commands)
#
# Commands:
# p, pick <commit> = use commit
# r, reword <commit> = use commit, but edit the commit message
# e, edit <commit> = use commit, but stop for amending
# s, squash <commit> = use commit, but meld into previous commit
# f, fixup [-C | -c] <commit> = like "squash" but keep only the previous

Git rebase – a note

Warning: Be very careful when rebasing pushed code!

$ git push --force

Atlassian Git rebase tutorial

Git rebase

Git reflog

One of the tenets Linus set for Git was that it had to be safe.
Meaning you have to be able to get back to any state in the repository - a mechanism for tracking state.

$ git reflog

NOTE: The reflog is garbage collected, typically after 30-90 days (configurable)

Git hooks

Like many other Version Control Systems, Git has a way to fire off custom scripts when certain important actions occur

Hooks

Scripts

.git/hooks/pre-rebase

#!/bin/sh

# Disallow all rebasing
echo "pre-rebase: Rebasing is dangerous. Don't do it."
exit 1

Git hooks

Git archive

$ git archive --output=archive.tar --format=tar master

Specify files to be excluded in the .gitattributes file

Example:

.gitattributes  export-ignore
.gradle         export-ignore
.idea           export-ignore
.gitignore      export-ignore
src/test        export-ignore

Make sure to commit the .gitattributes file, or git archive won’t pick up the settings

The gitattributes can do much more…

Git bisect

git-bisect - Use binary search to find the commit that introduced a bug

# HEAD is broken and 893b28d is last known working commit
$ git bisect start HEAD 893b28d --
$ git bisect run ./gradlew check

This example uses Gradle, but any testsuite or script that returns an ERROR or OK will do
Fx a bash script returning a non-zero value

Git and binary files

Git can store binary files just fine, but editing them typically causes the repo to grow the size of the file since it cant diff efficiently.

If many big binary files consider Git Annex or LFS

submodules

It often happens that while working on one project, you need to use another project from within it

A way of including other Git projects in your Git repo - but you don’t have a copy of the repo, you have a reference to a commit hash in the other repo.

If the remote repo changes, your version does not until you update

$ git submodule update --init --recursive

Setting are stored in .gitmodules

[submodule "src/main/java/some-other-project"]
path = src/main/java/some-other-project
url = https://github.com/dauer/src/java/some-other-project.git
 ...

Git submodules

Sparse index

The sparse-checkout feature allows users to focus a working directory on a subset of the files at HEAD

Sparse-index

IDE and GUI

IDE support

GUI

Git & GPG

Signing your work

If you’re taking work from others on the internet and want to verify that commits are actually from a trusted source
